KOMADA Stacker

KOMADA Semi Powered Stacker

Product Code		SEM 1025	SEM 1030	SEM 1035	SEM 1525	SEM 1530	SEM 1535
Capacity	kg	1000			1500
Load Center (C)	mm	450
Type of Lifting		Electric
Operate type		Walkie
Wheel
Material		Nylon
Qty of Steering/ loading wheel		2/2
Wheel Base	mm	1182
Loading Wheel	mm	Ø80 x 60
Steering Wheel	mm	Ø180 x 50

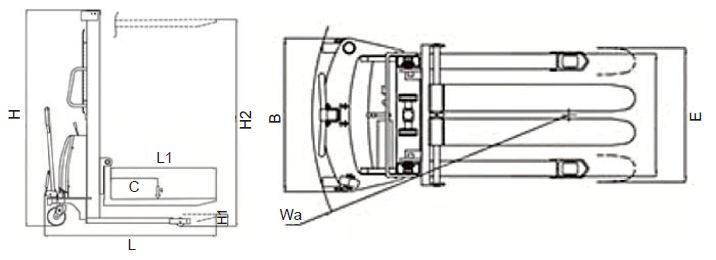

Dimension
Min Fork height (H1)	mm	90
Max. fork height (H2)	mm	2500	3000	3500	2500	3000	3500
Fork outside width (E)	mm	320-740
Fork inside width	mm	20-440
Fork length (L1)	mm	1150
Single Fork size	mm	150/60
Overall length (L)	mm	1810
Overall width (B)	mm	770
Overall Height (H1)	mm	1830	2080	2330	1880	2130	2380
Maximum lifting stroke	mm	2410	2910	3410	2410	2910	3410
Minimum turning radius (Wa)	mm	1450
Performance
Max. lifting height (laden/unladen)	mm/s	40-50/85-95
Lowering speed (laden/unladen)	mm/s	90-110/ 85-95
Electric
Lifting Motor	Kw	1.6
Battery	V/Ah	12V120
