KOMADA Stacker
KOMADA Self Lifting Stacker
KOMADA Self Lifting Stacker
Specifications :
| Product code | ZTS 0513 | |
| Base | ||
| Capacity | 500 (kg) | |
| Load center (C) | 400 (mm) | |
| Type of lifting | Electric | |
| Operate Type | Walkie | |
| Wheel | ||
| Material | Nylon / PU | |
| Wheel Base (y) | 860 (mm) | |
| Front Wheel Base (b11) | 380 (mm) | |
| Back Wheel Base (b10) | 670 (mm) | |
| Qty of Steering/Bearing/Balance Wheel | 2/2/6 | |
| Bearing Wheel | Ø70 x 60 | |
| Steering Wheel | Ø100 x 50 | |
| Balance Wheel | Ø40 x 26 | |
| Training Wheel | Ø30 x 26 | |
| Dimension | ||
| Min fork height | 90 (mm) | |
| Max fork height (h3) | 1300 (mm) | |
| Fork outside width | 535 (mm) | |
| Fork inside width | 225 (mm) | |
| Fork Length | 1150(mm) | |
| Single Fork size (e/s) | 155/60 (mm) | |
| Overall length (L1) | 1600 (mm) | |
| Overall width (b1) | 790 (mm) | |
| Overall height (h1) | 1600 (mm) | |
| Whole height (after tape file shelf) (h4) | 2900 (mm) | |
| Length of vertical surface to fork (L2) | 1150 (mm) | |
| Min turning radius | 1120 (mm) | |
| Performance | ||
| Lifting Speed (laden/unladen) | 80/110 (mm/s) | |
| Lowering Speed (laden/unladen) | 80/80 (mm/s) | |
| Electrical | ||
| Lift Motor | 12/0.8 (V/Kw) | |
| Battery Capacity | 12/33 (V/Ah) | |
| Weight | ||
| Battery Weight | 10 (kg) | |

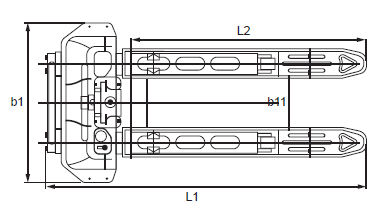

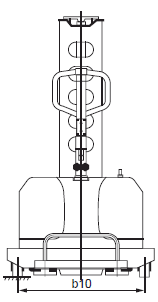

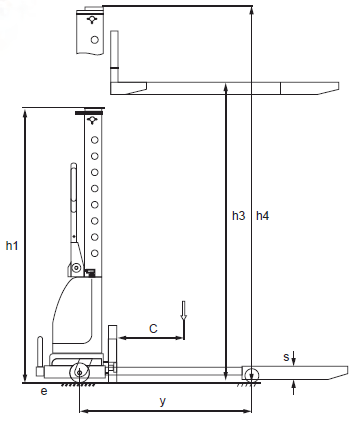

The drawing of Self Lifting Stacker (ZTS 0513) :
KOMADA Self Lifting Stacker -ZTS 0513
Advantage:
• Loading capacity: 500kg, 700kg, 1000kg is optional.
• Lifting height is 800 - 1500mm. At max lifting height, the loading is no reduce.
• Semi electric type self lifting stacker, the lifting and lowering speed is adjustable,
according to the user's needs.
• Steering chain auxilary device.
• Over discharge protection,m extending battery life.
• Sealed batteries free of maintenance, safe operation and no pullution.
• Explosion-proof valve design, down more stable and reliable.
• 700kg model adds the design of the normal to facilitate the lifting of the cargo.
• Add the design of the guide rail, makes pushing and pulling the goods more labor saving and convenient.
